Breathable PU Track Material: Eco EPDM Granules, Durable & All-Weather Sports Surface

Categories	Breathable Plastic Track Material
Brand	Paint Universe
Model	PU-002
Color	red, blue, green, yellow, white, etc
Update Time	May 1,2025

Contact Now

Favorites

Detail Information

Information

Breathable Plastic Track Material

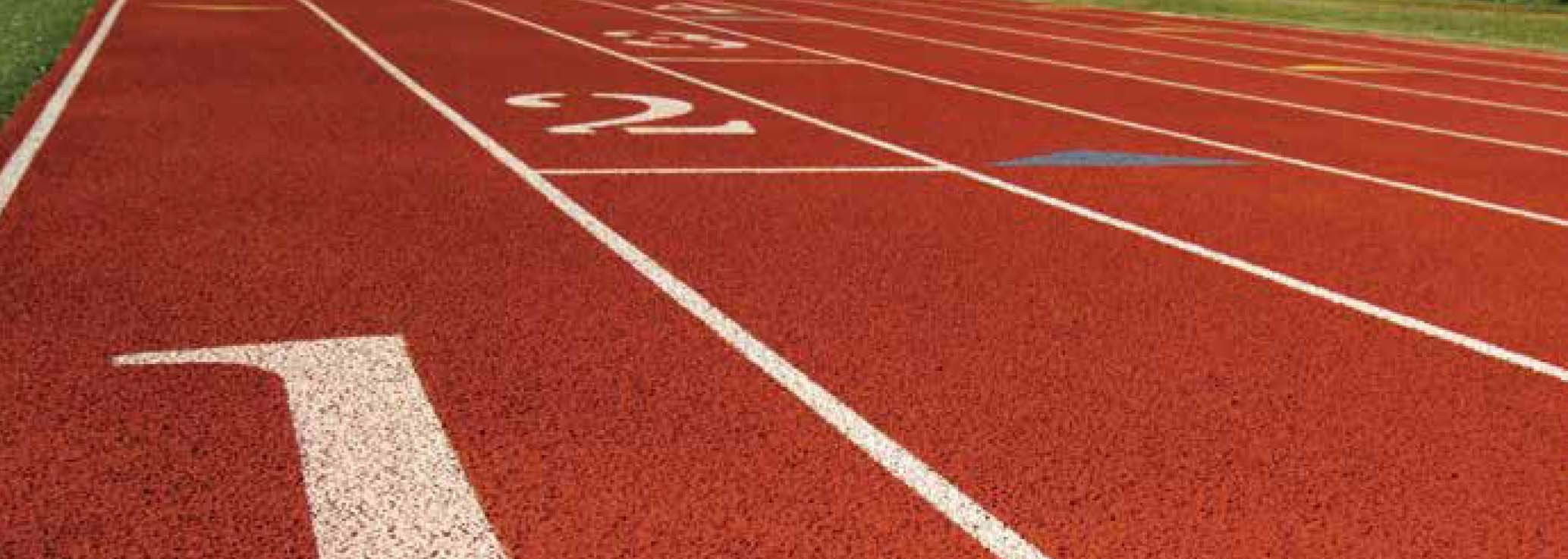

Breathable polyurethane running tracks are constructed by proportionally mixing a sports field-specific polyurethane binder with specialized rubber granules, which are then laid to a controlled thickness using professional paving equipment. The surface is spray-applied with a mixture of EPDM rubber granules and polyurethane topcoat of the same color through specialized spraying machinery. This type of track is suitable for various applications including school sports fields, stadium athletic tracks, semi-circular areas, auxiliary zones, public fitness trails, indoor gymnasium training tracks, and playground pavement surfaces across all levels.

Scope Of Application

It is suitable for simple sites in primary and secondary schools. lt is mechanically sprayed. The bottom layer is a cushion paved mechanically. Meet the training standards of professional track and field athletes.

Product Features

Features：

1. Breathable

2. Permeable

3. Non fading

4. UV resistance

5. Flat

6. Shock absorption

7. Good protection

8. Price Economy

Layered Diagram

Material Parameter

Breathable PU Track Material Parameter
Parameter Name	Parameter Value
Main Ingredients	Polyether Polyol,Isocyanate,EPDM
Density	1-1.5g/cm³
Polymer Content	20-40%
Shore A Hardness	≥45
Tensile Strength (Mpa)	≥0.6
Fracture Elongation Rate /%	≥50
Vertical Deformation /mm	1.0-3.0
Thickness	Average thickness 13mm, minimum not less than 10mm
Slope Requirements	Longitudinal slope ≤ 0.1%, transverse slope ≤ 1.0%
Evenness	The gap under a 2-meter straightedge shall not exceed 3mm.
Drainage Performance	Permeable Type
Heavy metals (lead, chromium, cadmium, mercury) /mg/kg	≤2
Flame Retardancy	I
TVOC Emissions mg/(㎡. h)	≤5.0
Weather Resistance	Aging box 500H, performance qualified
Nail Resistance	Not resistant to long nail shoes
Anti Slip Value (BPN. 20 ℃)	90-110 (Dry Test)

Ingredient List

Breathable PU Track Material Ingredient List 13mm Plastic Track
Name Of Proportioning Material	Model	Packaging Specifications	Net Weight
Single component adhesive (base)	LS-002	200L 570mm diameter x 890mm height	200kg/barrel
Available granules: black granules (2-4mm), white EPDM granules (2-4mm)	LS-032	/	25kg/bag
Single component adhesive	LS-003	200L 570mm diameter x 890mm height	200kg/barrel
Running Track Topcoat Red/Green/Blue	LS-007	A：200L, B:250L 570mm diameter x 890mm height	A:200kg/barrel,B:250kg/barrel
EDPM Adhesive Powder	LS-033	/	25kg/bag
Eco-friendly Catalytic Agent	LS-009	275mm base diameter * 285mm surface diameter * 362mm height or else	20KG/barrel or else
EPDM granules (1-2mm)	LS-026	/	25kg/bag
Eco-friendly Diluent	LS-010	20L or 200L 275mm base diameter * 285mm surface diameter * 362mm height or 570mm diameter x 890mm height	20KG/barrel or 200kg/barrel
Marking Paint	LS-011	5L	5.1kg/barrel
Lead time (within days)	1-7 days, usually within 24 hours
Sales Method	Sell all materials for the ingredient list
