Hybrid Rubber Running Track Surface | Eco-Friendly & Durable Sports Flooring Solution

Categories	Hybrid Plastic Track Material
Trademark/Brand	Paint Universe
Model	PU-003
Color	red, blue, green, yellow, white, etc
Update Time	Nov 5,2025

Contact Now

Favorites

Detail Information

Information

Hybrid Plastic Track Material

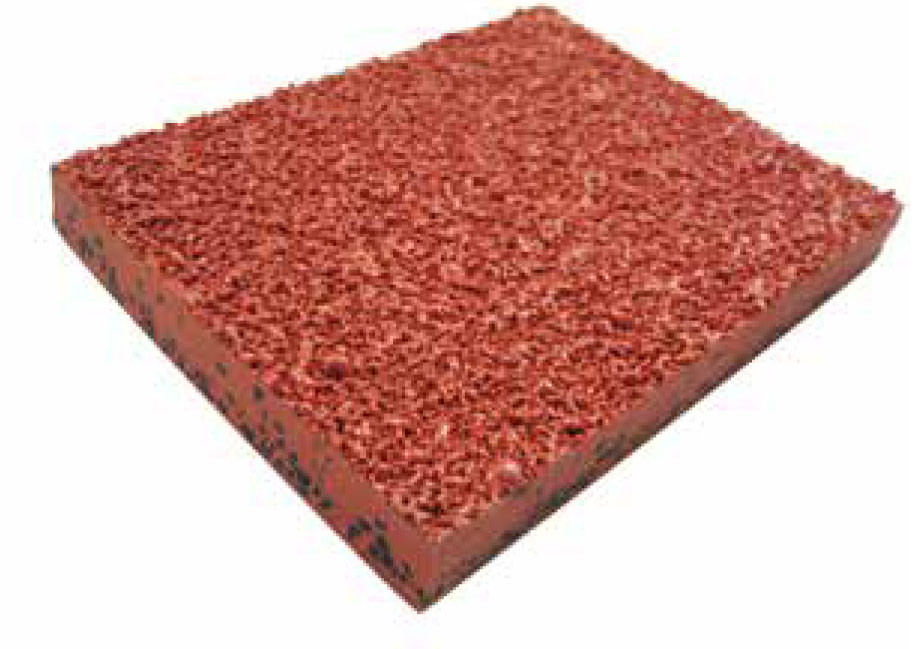

The hybrid plastic track adopts a two-layer structure.The bottom layer is an elastic layer of a part of the rubber blended with the whole PU, and the surface layer is a wear-resistant layer of the wear-resistant polyurethane topcoat mixed with EPDMparticles.

Scope Of Application

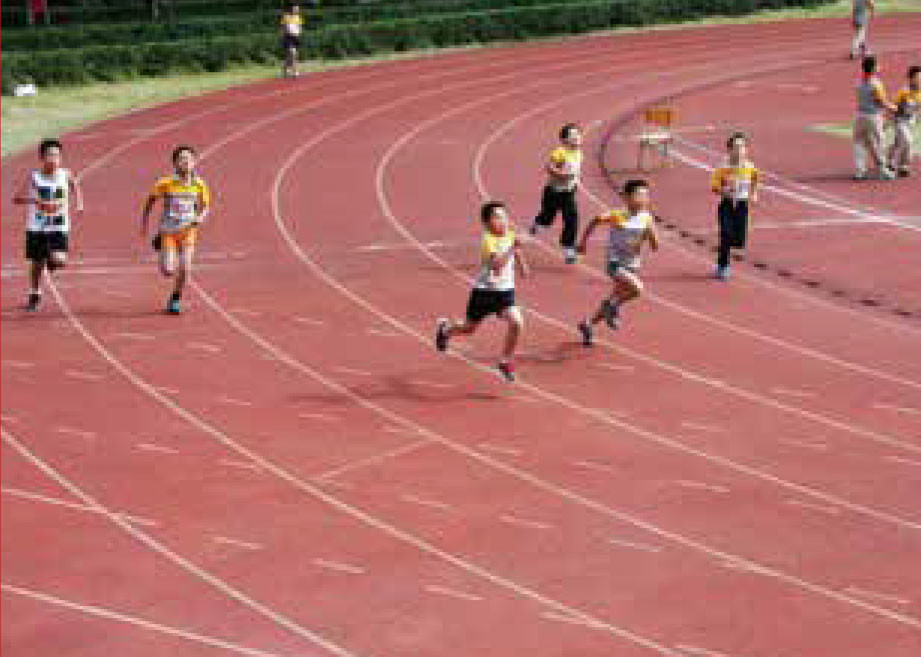

Universities, technical secondary schools, primary and secondary schools, professional sports venues, plastic runways, semi-circular areas, auxiliary areas, national fitness paths, indoor gymna-sium training runways, amusement parks and pedestrian anti-skid roads.

Product Features

1. Environmentally friendly and non-toxic

2. Good weather resistance

3. Good rebound force

4. Multiple colors

5. Non fading

6. Wear resistant

7. Voltage resistance

8. Shock absorption

Layered Diagram

Material Parameter

Hybrid Rubber Running Track Material Parameter
Parameter Name	Parameter Value
Main Ingredients	Polyether Polyol,Isocyanate,EPDM
Density	1-1.3g/cm³
Polymer Content	30-40%
Shore A Hardness	≥45
Tensile Strength (Mpa)	≥0.6
Fracture Elongation Rate /%	≥50
Vertical Deformation /mm	1.0-3.0
Thickness	Average thickness 13mm, minimum not less than 10mm
Slope Requirements	Longitudinal slope ≤ 0.1%, transverse slope ≤ 1.0%
Evenness	The gap under a 2-meter straightedge shall not exceed 3mm.
Drainage Performance	Non permeable type
Heavy metals (lead, chromium, cadmium, mercury) /mg/kg	≤2
Flame Retardancy	I
TVOC Emissions mg/(㎡. h)	≤5.0
Weather Resistance	Aging box 500H, performance qualified
Nail Resistance	Anti spiked shoes
Anti Slip Value (BPN. 20 ℃)	90-110 (Dry Test)

Ingredient List

Hybrid Rubber Running Track Ingredient List 13mm Plastic Track
Name Of Proportioning Material	Model	Packaging Specifications	Net Weight
Waterproof Primer	LS-001	20L 275mm base diameter * 285mm surface diameter * 362mm height	20kg/barrel
Available granules: black granules (2-4mm), red or white EPDM granules (2-4mm) or else color granules	LS-032	/	25kg/bag
Runway material PU	LS-005	A：200L, B:300L 570mm diameter x 890mm height	A:200kg/barrel,B:300kg/barrel
Running Track Topcoat Red/Green/Blue	LS-007	A：200L, B:250L 570mm diameter x 890mm height	A:200kg/barrel,B:250kg/barrel
EPDM granules (1-3mm)	LS-026	/	25kg/bag
Eco-friendly Catalytic Agent	LS-009	275mm base diameter * 285mm surface diameter * 362mm height or else	20KG/barrel or else
Eco-friendly Diluent	LS-010	20L or 200L 275mm base diameter * 285mm surface diameter * 362mm height or 570mm diameter x 890mm height	20KG/barrel or 200kg/barrel
Marking Paint	LS-011	5L	5.1kg/barrel
Lead time (within days)	1-7 days, usually within 24 hours
Sales Method	Sell all materials for the ingredient list
